[Модуль] zigbee2mqtt (zigbee2mqtt)

[laptevd]

Что вы предлагаете?

Предложить я ничего не могу Настроил отправку 0 z2m через 5 сек и отключил эту функцию в MDM, после этого заработало как положено. Похоже раз в 55 минут z2m посылает что-то типа пинга на устройства, и они на него отвечают, потому как уровень сигнала иногда отличается при этих пингах, хотя все остальное остается как при последнем срабатывании. Или z2m сам определяет уровень сигнала. Не знаю, как там все устроено

Скажите, а как вы это сделали? Только осваиваю mdm, устал уже с ложным срабатыванием датчика движения каждые 55 минут биться

[directman66]

Обновление:
1) Доработан процесс миграции между шлюзами. Теперь при миграции устройств должны обновляться топики управления, т.е. логику мажордомо перенастраивать не нужно. Просьба протестировать и отписаться.
2) Добавлен просмотр логов нескольких шлюзов SLS, при пустом значение IP адреса SLS страница с логами не отображается.
3) При отсутствии пути Z2M теперь страница с логом Z2M не отображается.

[Denis_k]

обновил zigbee2mqtt по мануалу из "Обновление zigbee2mqtt" вкладки Help модуля, все равно после рестарта модуль долго не живет

Zigbee2mqtt LogSPOILER_SHOW

1588487324: /opt/zigbee2mqtt/data/log/2020-05-03.08-33-42/log.txt
warn 2020-05-03 09:23:50: Soft resetted ZNP due to timeout
warn 2020-05-03 09:23:50: Soft reset timeout triggered
debug 2020-05-03 09:23:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 09:18:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 09:13:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 09:08:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 09:03:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:58:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:53:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:48:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:43:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:38:47: Saving state to file /opt/zigbee2mqtt/data/state.json
at rejected (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:6:65))
at Generator.throw ()
at Endpoint. (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:349:23)
error 2020-05-03 08:35:54: Failed to call 'DeviceGroupMembership' 'onMQTTMessage' (Error: Command 0x00124b001940c125/1 genGroups.getMembership({"groupcount":0,"grouplist":[]}, {"timeout":10000,"manufacturerCode":null,"disableDefaultResponse":true}) failed (Error: Timeout - 0 - 1 - 4 - 4 - 2 after 10000ms)
at rejected (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:6:65))
at Generator.throw ()
at Endpoint. (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:349:23)
error 2020-05-03 08:35:49: Failed to call 'DeviceGroupMembership' 'onMQTTMessage' (Error: Command 0x00158d00045d0200/1 genGroups.getMembership({"groupcount":0,"grouplist":[]}, {"timeout":10000,"manufacturerCode":null,"disableDefaultResponse":true}) failed (Error: AREQ - AF - dataConfirm after 9000ms)
at rejected (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:6:65))
at Generator.throw ()
at Endpoint. (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:349:23)
error 2020-05-03 08:35:40: Failed to call 'DeviceGroupMembership' 'onMQTTMessage' (Error: Command 0x00158d000410c4ae/1 genGroups.getMembership({"groupcount":0,"grouplist":[]}, {"timeout":10000,"manufacturerCode":null,"disableDefaultResponse":true}) failed (Error: AREQ - AF - dataConfirm after 9000ms)
debug 2020-05-03 08:35:31: Received MQTT message on 'zigbee2mqtt/bridge/device/0x00158d00045d0200/get_group_membership' with data ''
debug 2020-05-03 08:35:31: Received MQTT message on 'zigbee2mqtt/bridge/device/0x00158d000410c4ae/get_group_membership' with data ''
debug 2020-05-03 08:35:31: Received MQTT message on 'zigbee2mqtt/bridge/device/0x00124b001940c125/get_group_membership' with data ''
info 2020-05-03 08:35:27: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"type":"groups","message":[]}'
debug 2020-05-03 08:35:27: Received MQTT message on 'zigbee2mqtt/bridge/config/groups' with data ''
info 2020-05-03 08:35:16: MQTT publish: topic 'zigbee2mqtt/bridge/config', payload '{"version":"1.13.0","commit":"55e6283","coordinator":{"type":"zStack30x","meta":{"transportrev":2,"product":2,"majorrel":2,"minorrel":7,"maintrel":2,"revision":20200128}},"log_level":"debug","permit_join":false}'
info 2020-05-03 08:35:16: Zigbee: disabling joining new devices.
debug 2020-05-03 08:35:16: Received MQTT message on 'zigbee2mqtt/bridge/config/permit_join' with data 'false'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d000410c4ae/linkquality/config', payload '{"icon":"mdi:signal","unit_of_measurement":"lqi","value_template":"{{ value_json.linkquality }}","state_topic":"zigbee2mqtt/0x00158d000410c4ae","json_attributes_topic":"zigbee2mqtt/0x00158d000410c4ae","name":"0x00158d000410c4ae_linkquality","unique_id":"0x00158d000410c4ae_linkquality_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d000410c4ae"],"name":"0x00158d000410c4ae","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara door & window contact sensor (MCCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d000410c4ae/battery/config', payload '{"unit_of_measurement":"%","device_class":"battery","value_template":"{{ value_json.battery }}","state_topic":"zigbee2mqtt/0x00158d000410c4ae","json_attributes_topic":"zigbee2mqtt/0x00158d000410c4ae","name":"0x00158d000410c4ae_battery","unique_id":"0x00158d000410c4ae_battery_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d000410c4ae"],"name":"0x00158d000410c4ae","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara door & window contact sensor (MCCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/binary_sensor/0x00158d000410c4ae/contact/config', payload '{"payload_on":false,"payload_off":true,"value_template":"{{ value_json.contact }}","device_class":"door","state_topic":"zigbee2mqtt/0x00158d000410c4ae","json_attributes_topic":"zigbee2mqtt/0x00158d000410c4ae","name":"0x00158d000410c4ae_contact","unique_id":"0x00158d000410c4ae_contact_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d000410c4ae"],"name":"0x00158d000410c4ae","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara door & window contact sensor (MCCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/linkquality/config', payload '{"icon":"mdi:signal","unit_of_measurement":"lqi","value_template":"{{ value_json.linkquality }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_linkquality","unique_id":"0x00158d00045d0200_linkquality_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/battery/config', payload '{"unit_of_measurement":"%","device_class":"battery","value_template":"{{ value_json.battery }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_battery","unique_id":"0x00158d00045d0200_battery_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/pressure/config', payload '{"unit_of_measurement":"hPa","device_class":"pressure","value_template":"{{ value_json.pressure }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_pressure","unique_id":"0x00158d00045d0200_pressure_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/humidity/config', payload '{"unit_of_measurement":"%","device_class":"humidity","value_template":"{{ value_json.humidity }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_humidity","unique_id":"0x00158d00045d0200_humidity_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/temperature/config', payload '{"unit_of_measurement":"°C","device_class":"temperature","value_template":"{{ value_json.temperature }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_temperature","unique_id":"0x00158d00045d0200_temperature_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'zigbee2mqtt/bridge/config', payload '{"version":"1.13.0","commit":"55e6283","coordinator":{"type":"zStack30x","meta":{"transportrev":2,"product":2,"majorrel":2,"minorrel":7,"maintrel":2,"revision":20200128}},"log_level":"debug","permit_join":true}'
info 2020-05-03 08:33:50: MQTT publish: topic 'zigbee2mqtt/0x00158d000410c4ae', payload '{"battery":91,"voltage":2985,"contact":true,"linkquality":105}'
info 2020-05-03 08:33:50: MQTT publish: topic 'zigbee2mqtt/0x00158d00045d0200', payload '{"battery":100,"voltage":3045,"temperature":25.61,"humidity":34.95,"pressure":992.9,"linkquality":107}'
info 2020-05-03 08:33:50: MQTT publish: topic 'zigbee2mqtt/bridge/state', payload 'online'
info 2020-05-03 08:33:50: Connected to MQTT server
info 2020-05-03 08:33:50: Connecting to MQTT server at mqtt://192.168.1.100:1883
debug 2020-05-03 08:33:50: Soft reset timeout set to 3000 seconds
info 2020-05-03 08:33:50: Zigbee: allowing new devices to join.
warn 2020-05-03 08:33:50: Set `permit_join` to `false` once you joined all devices.
warn 2020-05-03 08:33:50: Allowing new devices to join.
warn 2020-05-03 08:33:50: `permit_join` set to `true` in configuration.yaml.
info 2020-05-03 08:33:50: 0x00158d000410c4ae (0x00158d000410c4ae): MCCGQ11LM - Xiaomi Aqara door & window contact sensor (EndDevice)
info 2020-05-03 08:33:50: 0x00158d00045d0200 (0x00158d00045d0200): WSDCGQ11LM - Xiaomi Aqara temperature, humidity and pressure sensor (EndDevice)
info 2020-05-03 08:33:50: Currently 2 devices are joined:
debug 2020-05-03 08:33:49: Zigbee network parameters: {"panID":6754,"extendedPanID":"0x00124b001940c125","channel":26}
info 2020-05-03 08:33:49: Coordinator firmware version: '{"type":"zStack30x","meta":{"transportrev":2,"product":2,"majorrel":2,"minorrel":7,"maintrel":2,"revision":20200128}}'
info 2020-05-03 08:33:49: zigbee-herdsman started
debug 2020-05-03 08:33:47: Using zigbee-herdsman with settings: '{"network":{"panID":6754,"extendedPanID":[221,221,221,221,221,221,221,221],"channelList":[26],"networkKey":"HIDDEN"},"databasePath":"/opt/zigbee2mqtt/data/database.db","databaseBackupPath":"/opt/zigbee2mqtt/data/database.db.backup","backupPath":"/opt/zigbee2mqtt/data/coordinator_backup.json","serialPort":{"baudRate":115200,"rtscts":true,"path":"/dev/ttyACM0"},"adapter":{"concurrent":null}}'
info 2020-05-03 08:33:47: Starting zigbee-herdsman...
info 2020-05-03 08:33:47: Starting zigbee2mqtt version 1.13.0 (commit #55e6283)
debug 2020-05-03 08:33:46: Loaded state from file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:33:43: Removing old log directory '/opt/zigbee2mqtt/data/log/2020-04-30.08-08-02'
info 2020-05-03 08:33:43: Logging to console and directory: '/opt/zigbee2mqtt/data/log/2020-05-03.08-33-42' filename: log.txt

[VOVA_iS]

обновил zigbee2mqtt по мануалу из "Обновление zigbee2mqtt" вкладки Help модуля, все равно после рестарта модуль долго не живет

Zigbee2mqtt LogSPOILER_SHOW

1588487324: /opt/zigbee2mqtt/data/log/2020-05-03.08-33-42/log.txt
warn 2020-05-03 09:23:50: Soft resetted ZNP due to timeout
warn 2020-05-03 09:23:50: Soft reset timeout triggered
debug 2020-05-03 09:23:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 09:18:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 09:13:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 09:08:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 09:03:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:58:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:53:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:48:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:43:47: Saving state to file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:38:47: Saving state to file /opt/zigbee2mqtt/data/state.json
at rejected (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:6:65))
at Generator.throw ()
at Endpoint. (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:349:23)
error 2020-05-03 08:35:54: Failed to call 'DeviceGroupMembership' 'onMQTTMessage' (Error: Command 0x00124b001940c125/1 genGroups.getMembership({"groupcount":0,"grouplist":[]}, {"timeout":10000,"manufacturerCode":null,"disableDefaultResponse":true}) failed (Error: Timeout - 0 - 1 - 4 - 4 - 2 after 10000ms)
at rejected (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:6:65))
at Generator.throw ()
at Endpoint. (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:349:23)
error 2020-05-03 08:35:49: Failed to call 'DeviceGroupMembership' 'onMQTTMessage' (Error: Command 0x00158d00045d0200/1 genGroups.getMembership({"groupcount":0,"grouplist":[]}, {"timeout":10000,"manufacturerCode":null,"disableDefaultResponse":true}) failed (Error: AREQ - AF - dataConfirm after 9000ms)
at rejected (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:6:65))
at Generator.throw ()
at Endpoint. (/opt/zigbee2mqtt/node_modules/zigbee-herdsman/dist/controller/model/endpoint.js:349:23)
error 2020-05-03 08:35:40: Failed to call 'DeviceGroupMembership' 'onMQTTMessage' (Error: Command 0x00158d000410c4ae/1 genGroups.getMembership({"groupcount":0,"grouplist":[]}, {"timeout":10000,"manufacturerCode":null,"disableDefaultResponse":true}) failed (Error: AREQ - AF - dataConfirm after 9000ms)
debug 2020-05-03 08:35:31: Received MQTT message on 'zigbee2mqtt/bridge/device/0x00158d00045d0200/get_group_membership' with data ''
debug 2020-05-03 08:35:31: Received MQTT message on 'zigbee2mqtt/bridge/device/0x00158d000410c4ae/get_group_membership' with data ''
debug 2020-05-03 08:35:31: Received MQTT message on 'zigbee2mqtt/bridge/device/0x00124b001940c125/get_group_membership' with data ''
info 2020-05-03 08:35:27: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"type":"groups","message":[]}'
debug 2020-05-03 08:35:27: Received MQTT message on 'zigbee2mqtt/bridge/config/groups' with data ''
info 2020-05-03 08:35:16: MQTT publish: topic 'zigbee2mqtt/bridge/config', payload '{"version":"1.13.0","commit":"55e6283","coordinator":{"type":"zStack30x","meta":{"transportrev":2,"product":2,"majorrel":2,"minorrel":7,"maintrel":2,"revision":20200128}},"log_level":"debug","permit_join":false}'
info 2020-05-03 08:35:16: Zigbee: disabling joining new devices.
debug 2020-05-03 08:35:16: Received MQTT message on 'zigbee2mqtt/bridge/config/permit_join' with data 'false'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d000410c4ae/linkquality/config', payload '{"icon":"mdi:signal","unit_of_measurement":"lqi","value_template":"{{ value_json.linkquality }}","state_topic":"zigbee2mqtt/0x00158d000410c4ae","json_attributes_topic":"zigbee2mqtt/0x00158d000410c4ae","name":"0x00158d000410c4ae_linkquality","unique_id":"0x00158d000410c4ae_linkquality_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d000410c4ae"],"name":"0x00158d000410c4ae","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara door & window contact sensor (MCCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d000410c4ae/battery/config', payload '{"unit_of_measurement":"%","device_class":"battery","value_template":"{{ value_json.battery }}","state_topic":"zigbee2mqtt/0x00158d000410c4ae","json_attributes_topic":"zigbee2mqtt/0x00158d000410c4ae","name":"0x00158d000410c4ae_battery","unique_id":"0x00158d000410c4ae_battery_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d000410c4ae"],"name":"0x00158d000410c4ae","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara door & window contact sensor (MCCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/binary_sensor/0x00158d000410c4ae/contact/config', payload '{"payload_on":false,"payload_off":true,"value_template":"{{ value_json.contact }}","device_class":"door","state_topic":"zigbee2mqtt/0x00158d000410c4ae","json_attributes_topic":"zigbee2mqtt/0x00158d000410c4ae","name":"0x00158d000410c4ae_contact","unique_id":"0x00158d000410c4ae_contact_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d000410c4ae"],"name":"0x00158d000410c4ae","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara door & window contact sensor (MCCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/linkquality/config', payload '{"icon":"mdi:signal","unit_of_measurement":"lqi","value_template":"{{ value_json.linkquality }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_linkquality","unique_id":"0x00158d00045d0200_linkquality_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/battery/config', payload '{"unit_of_measurement":"%","device_class":"battery","value_template":"{{ value_json.battery }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_battery","unique_id":"0x00158d00045d0200_battery_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/pressure/config', payload '{"unit_of_measurement":"hPa","device_class":"pressure","value_template":"{{ value_json.pressure }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_pressure","unique_id":"0x00158d00045d0200_pressure_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/humidity/config', payload '{"unit_of_measurement":"%","device_class":"humidity","value_template":"{{ value_json.humidity }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_humidity","unique_id":"0x00158d00045d0200_humidity_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'homeassistant/sensor/0x00158d00045d0200/temperature/config', payload '{"unit_of_measurement":"°C","device_class":"temperature","value_template":"{{ value_json.temperature }}","state_topic":"zigbee2mqtt/0x00158d00045d0200","json_attributes_topic":"zigbee2mqtt/0x00158d00045d0200","name":"0x00158d00045d0200_temperature","unique_id":"0x00158d00045d0200_temperature_zigbee2mqtt","device":{"identifiers":["zigbee2mqtt_0x00158d00045d0200"],"name":"0x00158d00045d0200","sw_version":"Zigbee2mqtt 1.13.0","model":"Aqara temperature, humidity and pressure sensor (WSDCGQ11LM)","manufacturer":"Xiaomi"},"availability_topic":"zigbee2mqtt/bridge/state"}'
info 2020-05-03 08:33:51: MQTT publish: topic 'zigbee2mqtt/bridge/config', payload '{"version":"1.13.0","commit":"55e6283","coordinator":{"type":"zStack30x","meta":{"transportrev":2,"product":2,"majorrel":2,"minorrel":7,"maintrel":2,"revision":20200128}},"log_level":"debug","permit_join":true}'
info 2020-05-03 08:33:50: MQTT publish: topic 'zigbee2mqtt/0x00158d000410c4ae', payload '{"battery":91,"voltage":2985,"contact":true,"linkquality":105}'
info 2020-05-03 08:33:50: MQTT publish: topic 'zigbee2mqtt/0x00158d00045d0200', payload '{"battery":100,"voltage":3045,"temperature":25.61,"humidity":34.95,"pressure":992.9,"linkquality":107}'
info 2020-05-03 08:33:50: MQTT publish: topic 'zigbee2mqtt/bridge/state', payload 'online'
info 2020-05-03 08:33:50: Connected to MQTT server
info 2020-05-03 08:33:50: Connecting to MQTT server at mqtt://192.168.1.100:1883
debug 2020-05-03 08:33:50: Soft reset timeout set to 3000 seconds
info 2020-05-03 08:33:50: Zigbee: allowing new devices to join.
warn 2020-05-03 08:33:50: Set `permit_join` to `false` once you joined all devices.
warn 2020-05-03 08:33:50: Allowing new devices to join.
warn 2020-05-03 08:33:50: `permit_join` set to `true` in configuration.yaml.
info 2020-05-03 08:33:50: 0x00158d000410c4ae (0x00158d000410c4ae): MCCGQ11LM - Xiaomi Aqara door & window contact sensor (EndDevice)
info 2020-05-03 08:33:50: 0x00158d00045d0200 (0x00158d00045d0200): WSDCGQ11LM - Xiaomi Aqara temperature, humidity and pressure sensor (EndDevice)
info 2020-05-03 08:33:50: Currently 2 devices are joined:
debug 2020-05-03 08:33:49: Zigbee network parameters: {"panID":6754,"extendedPanID":"0x00124b001940c125","channel":26}
info 2020-05-03 08:33:49: Coordinator firmware version: '{"type":"zStack30x","meta":{"transportrev":2,"product":2,"majorrel":2,"minorrel":7,"maintrel":2,"revision":20200128}}'
info 2020-05-03 08:33:49: zigbee-herdsman started
debug 2020-05-03 08:33:47: Using zigbee-herdsman with settings: '{"network":{"panID":6754,"extendedPanID":[221,221,221,221,221,221,221,221],"channelList":[26],"networkKey":"HIDDEN"},"databasePath":"/opt/zigbee2mqtt/data/database.db","databaseBackupPath":"/opt/zigbee2mqtt/data/database.db.backup","backupPath":"/opt/zigbee2mqtt/data/coordinator_backup.json","serialPort":{"baudRate":115200,"rtscts":true,"path":"/dev/ttyACM0"},"adapter":{"concurrent":null}}'
info 2020-05-03 08:33:47: Starting zigbee-herdsman...
info 2020-05-03 08:33:47: Starting zigbee2mqtt version 1.13.0 (commit #55e6283)
debug 2020-05-03 08:33:46: Loaded state from file /opt/zigbee2mqtt/data/state.json
debug 2020-05-03 08:33:43: Removing old log directory '/opt/zigbee2mqtt/data/log/2020-04-30.08-08-02'
info 2020-05-03 08:33:43: Logging to console and directory: '/opt/zigbee2mqtt/data/log/2020-05-03.08-33-42' filename: log.txt

Какой стих у Вас?
Можно файл настройки посмотреть? И базу устройств
Судя по логу вы запрашиваете у устройств в какой они группе. Зачем?

[Denis_k]

Какой стих у Вас?
Можно файл настройки посмотреть? И базу устройств
Судя по логу вы запрашиваете у устройств в какой они группе. Зачем?

стик v3, покупался прошитым у камрада ACE из группы в телеге

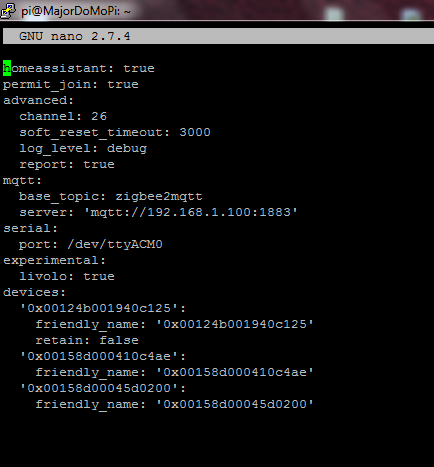

configuration.yamlSPOILER_SHOW


устройств всего пара

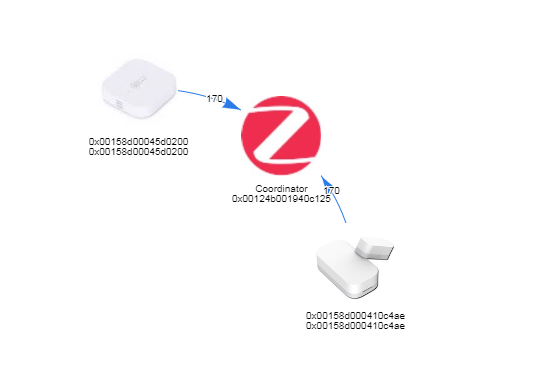

картаSPOILER_SHOW


Запросы видимо от нажатия на соотв. кнопку, это от бызысходности , значения с датчика не обновляются некоторое время даже пока модуль работает

[VOVA_iS]

Какой стих у Вас?
Можно файл настройки посмотреть? И базу устройств
Судя по логу вы запрашиваете у устройств в какой они группе. Зачем?

стик v3, покупался прошитым у камрада ACE из группы в телеге

configuration.yamlSPOILER_SHOW


устройств всего пара

картаSPOILER_SHOW


Запросы видимо от нажатия на соотв. кнопку, это от бызысходности , значения с датчика не обновляются некоторое время даже пока модуль работает

Измените

homeassistant: false
permit_join: false
Удалите строчку про ливоло (у вас их нет)
Измените канал связи на 11 (26 для ливоло) возможно устройства xiaomi нормально не работают на данном канале
«
Данные от датчика как долго не приходят?

Стик через USB удлинитель подключён?

[Denis_k]

Попробую внести изменения.

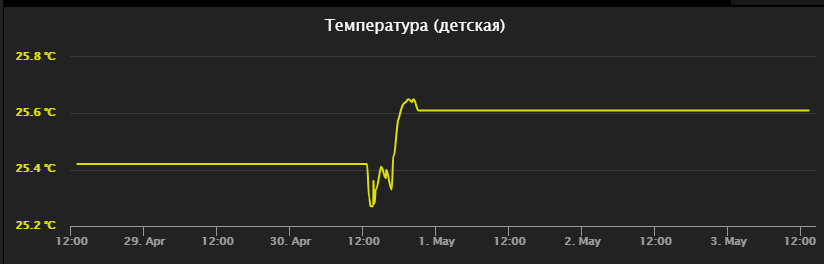

данные могут вообще не придти по модуль опять не отвалится, график примерно такой


[Denis_k]

стик подключен прям в raspberry

[Denis_k]

после изменений необходимо будет заново привязывать устройства (нахожусь далеко от системы)?

[VOVA_iS]

после изменений необходимо будет заново привязывать устройства (нахожусь далеко от системы)?

Да при изменения канала нужно заново привязывать устройства.
Купите обязательно USB удлинитель. И отведите стик подальше от Raspberry. (Рекомендую 30см минимум)
