SLS Zigbee Gateway

[Aven]

Вопрос: Какую прошивку выбрать для модуля ZigBee
Ответ: Все зависит от того какой у вас модуль и усилитель.
Прошивка должна быть обязательно основана на Z-Stack 3.0.

Для прошивки через CC Debugger:
Прошивка для модуля CC2530 без усилителя
Прошивка для модуля CC2530 с усилителем СС2591
Прошивка для модуля CC2530 с усилителем СС2592

Для прошивки через J-Link:
Прошивка для модуля CC2538 с усилителем СС2592

[SmoKE_xDDD]

Хотелось бы прикупить готовое решение =)

[Aven]

-----------------------------------------------------------------------------
Version: 20190923
-----------------------------------------------------------------------------
*Fix parsing ZCL commands from client clusters
*Fix Zigbee module reset indication
*Fix second ModelId for sensor WSDCGQ01LM
*Fix periodic pressure values from WSDCGQ11LM (thx Danikov Oleg)
+When new device is added to network it send event to MQTT and Log
+Renaming devices
+Support for IKEA TRADFRI remote control (E1524)

[Aven]

Группа поддержки в Telegram: https://t.me/slsys

[Aven]

Coming soon что называется

Управление сетью Zigbee через веб-интерфейс шлюза.



[Aven]

Version: 20190925
-----------------------------------------------------------------------------
*Disabled autostart joining on boot for more security
+Automatic restart gateway if zigbee module start failed

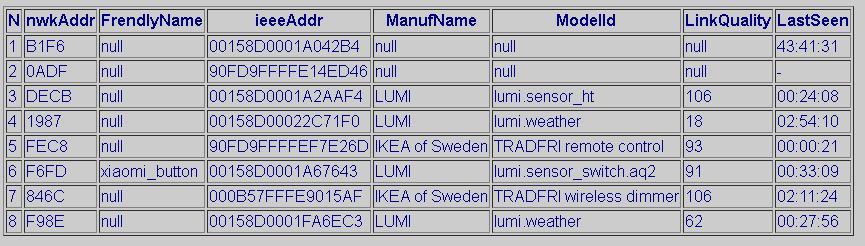

+Web interface for see zigbee devices list
+Web interface for see zigbee device states
+Web interface Start/Stop join button.
+Support for IKEA TRADFRI wireless dimmer (ICTC-G-1)
+Support for Xiaomi Aqara double key wired wall switch (QBKG12LM)

[Aven]

Version: 20190927
-----------------------------------------------------------------------------
+Saving devices on gateway reset
*Some fixes in Web interface
*Some fixes when starting coordinator
*Fix power & consumption value for Xiaomi plug (ZNCZ02LM)
*Fix battery voltage for Xiaomi devices - now in volts
+Support for DiY 4 Relays + 4 switches + 1 buzzer (DIYRuZ_R4_5)
+Support for DiY 20 button keypad (DIYRuZ_KEYPAD20)
+Support for DiY door/window open sensor (DIYRuZ_magnet)
+Support for Xiaomi Aqara wireless switch with gyroscope (WXKG12LM)
+Support for Xiaomi Aqara single key wireless wall switch (WXKG03LM)

[Aven]

Version: 20190930
-----------------------------------------------------------------------------
+mDNS responder ( locate: http://zgwXXXX.local )
*Some fixes in Web interface
+Support for Xiaomi Aqara single key wired wall switch (QBKG11LM)
+Support for Xiaomi Aqara single key wired wall switch without neutral wire (QBKG04LM)
+Support for Xiaomi Aqara S2 Lock (ZNMS12LM)
+Support for Xiaomi Aqara S2 Lock Pro (ZNMS13LM)
+Support for Xiaomi Vima Smart Lock (A6121)
+Support for IKEA TRADFRI LED bulb E14/E26/E27 600 lumen, dimmable, color, opal white (LED1624G9)
+Support for IKEA TRADFRI LED bulb E12/E14/E17 400 lumen, dimmable warm white, chandelier opal (LED1649C5)

[Aven]

Version: 20191002
-----------------------------------------------------------------------------
*Fixed redirect for reboot web page
*Disabling mDNS feature if domain is blank
+Support for Xiaomi Aqara wireless relay controller (LLKZMK11LM)
+Support for Xiaomi Aqara smart home cube (MFKZQ01LM)
+Support for IKEA TRADFRI motion sensor (E1525)
+Support for IKEA TRADFRI signal repeater (E1746)
+Support for IKEA TRADFRI LED bulb E26/E27 980 lumen, dimmable, white spectrum, opal white (LED1545G12)

[olehs]

А исходники откроете?
